Old 05 November 2015, 05:23   #1
Member

Country: Australia
Length: 3m +
Join Date: Nov 2015
Posts: 13
newbie question about inflating

Hi all,

I have been lurking on this forum for a while. It was really helping me greatly to browse through the forums and get the little bits of gems.

Our family have bought a second hand inflatable boat. It is super tough and the guy have really taken care of the motor (sparkling inside). The inflatable is in good condition and is quite heavy so I am guessing the quality is not too bad.

We haven't had the chance to try it yet as it has been raining lately in Sydney.

I just tried to inflate the boat this morning and every time I take the pump adaptor out of the valve the air just escape.

When I try to lock the valve pushpin then the pump doesn't blow any air in I have tried to leave it in for a few minutes and no air in.

As soon as I release the valve and put the adapter back only then will it pump (then of course when I remove the adapter a lot of air gushes out before I can get my hand to lock the valve pushpin)

I had a look on google and saw that there was one type of adapter that had a pin in it to push the pushpin in the valve. is it the one I need (or maybe I can just drill the hole in) to get or did I get it totally wrong?

I have one that looks like this:
The one is saw online looked like this:


I am using an electric inflator (not the expensive ones)

Sorry for the beginner question, and thank you very much for your help !

I bought a whole lot of accessories and I will show off the boat next time
__________________
randomjelly is offline   Reply With Quote
Old 05 November 2015, 06:48   #2
Member

beerbelly's Avatar

Country: UK - England
Town: teesside
Boat name: magic
Make: humber 5.5
Length: 5m +
Engine: mariner 115
MMSI: 232012453
Join Date: Apr 2014
Posts: 1,557
hi and welcome the type of valve you have with that type of adapter is called a halkey Roberts . generally with this type when the pin in the centre is pushed in and turned a quarter turn it is locked in the open (deflate) position .to inflate it should be then turned back a quarter turn until it springs out then its ready to inflate the small bar in the adaptor is meant to push the pin against spring pressure open when inflating when you unplug the adaptor a combination of air pressure and the spring should close the valve no other turning is required apart from installing the outer lid/stopper whatever its called.
__________________
beerbelly is offline   Reply With Quote
Old 05 November 2015, 09:03   #3
Member

Country: Australia
Length: 3m +
Join Date: Nov 2015
Posts: 13
Quote:
Originally Posted by beerbelly View Post
hi and welcome the type of valve you have with that type of adapter is called a halkey Roberts . generally with this type when the pin in the centre is pushed in and turned a quarter turn it is locked in the open (deflate) position .to inflate it should be then turned back a quarter turn until it springs out then its ready to inflate the small bar in the adaptor is meant to push the pin against spring pressure open when inflating when you unplug the adaptor a combination of air pressure and the spring should close the valve no other turning is required apart from installing the outer lid/stopper whatever its called.
Thanks that makes sense, however I am unable to find any online or they don't specify if it has one of those pin. Do all halkey roberts have the pin? Mine certainly doesn't
__________________
randomjelly is offline   Reply With Quote
Old 05 November 2015, 09:12   #4
Member

paddlers's Avatar

Country: UK - England
Town: Sticks, N.Yorks
Boat name: Tamanco
Make: Honwave 3.5AE
Length: 3m +
Engine: Tohatsu Outboard
Join Date: May 2012
Posts: 1,175
Click image for larger version

Name:	1492 halkey.jpg
Views:	304
Size:	16.7 KB
ID:	109564

The little yellow part in the centre. Push in and twist clockwise to lock open, opposite to close. Leave it in the closed position when inflating (it should be on a spring).
__________________
paddlers is offline   Reply With Quote
Old 05 November 2015, 09:15   #5
Member

Country: Australia
Length: 3m +
Join Date: Nov 2015
Posts: 13
Quote:
Originally Posted by paddlers View Post
Attachment 109564

The little yellow part in the centre. Push in and twist clockwise to lock open, opposite to close. Leave it in the closed position when inflating (it should be on a spring).
I think I have a problem when the adapter not the valve, the valve open and close but when it is closed it doesn't pump, I am thinking it has to be because my adapter doesn't have a pin or it should work without pin?
__________________
randomjelly is offline   Reply With Quote
Old 05 November 2015, 09:22   #6
Member

paddlers's Avatar

Country: UK - England
Town: Sticks, N.Yorks
Boat name: Tamanco
Make: Honwave 3.5AE
Length: 3m +
Engine: Tohatsu Outboard
Join Date: May 2012
Posts: 1,175
Some adapters have an extra little plastic lug on the end to open the valve. These may have snapped off on yours. They were on a Chinese 'Blue Wind' sib that I owned.
__________________
paddlers is offline   Reply With Quote
Old 05 November 2015, 09:26   #7
Member

paddlers's Avatar

Country: UK - England
Town: Sticks, N.Yorks
Boat name: Tamanco
Make: Honwave 3.5AE
Length: 3m +
Engine: Tohatsu Outboard
Join Date: May 2012
Posts: 1,175
Click image for larger version

Name:	air-valve-adaptor-for-inflatable-boat-air-pump-adaptor-50pcs.jpg
Views:	317
Size:	34.1 KB
ID:	109565

Here's one.
__________________
paddlers is offline   Reply With Quote
Old 05 November 2015, 09:32   #8
Member

Country: Australia
Length: 3m +
Join Date: Nov 2015
Posts: 13
Thanks, that makes sense. On the photos I rarely if ever see the pin so I wasn't sure that it was something that was standard now I will try to drill a hole and add a paperclip to see if it works . I will still order a new one but we're going out this week if the weather is good

Of course I will post if it worked tomorrow !
__________________
randomjelly is offline   Reply With Quote
Old 05 November 2015, 09:34   #9
Member

Country: Australia
Length: 3m +
Join Date: Nov 2015
Posts: 13
Quote:
Originally Posted by paddlers View Post
Attachment 109565

Here's one.
By plastic lug do you mean the transparent ring around the adapter or is it inside? If it's the former I do have a small plastic bit around the adapter but it doesn't do much.
__________________
randomjelly is offline   Reply With Quote
Old 05 November 2015, 09:43   #10
Member

paddlers's Avatar

Country: UK - England
Town: Sticks, N.Yorks
Boat name: Tamanco
Make: Honwave 3.5AE
Length: 3m +
Engine: Tohatsu Outboard
Join Date: May 2012
Posts: 1,175
It's the two lugs below the bayonet fitting that protrude down into the valve body. Look at my last picture and you'll see a difference from the standard fitting.
__________________
paddlers is offline   Reply With Quote
Old 05 November 2015, 09:59   #11
Member

Country: Australia
Length: 3m +
Join Date: Nov 2015
Posts: 13
Quote:
Originally Posted by paddlers View Post
It's the two lugs below the bayonet fitting that protrude down into the valve body. Look at my last picture and you'll see a difference from the standard fitting.
Is it the two black bits at the end? Sorry I am a bit confused

I have attached mine:

__________________
randomjelly is offline   Reply With Quote
Old 05 November 2015, 10:14   #12
Member

paddlers's Avatar

Country: UK - England
Town: Sticks, N.Yorks
Boat name: Tamanco
Make: Honwave 3.5AE
Length: 3m +
Engine: Tohatsu Outboard
Join Date: May 2012
Posts: 1,175
Two black bits on the end, they open the valve. The one you're holding is the standard bayonet that will fit most types (certainly my Honwave) but the Blue Wind (Chinese sib) I owned definitely needed the type with the lugs.
__________________
paddlers is offline   Reply With Quote
Old 05 November 2015, 10:16   #13
Member

Country: Australia
Length: 3m +
Join Date: Nov 2015
Posts: 13
Quote:
Originally Posted by paddlers View Post
Two black bits on the end, they open the valve. The one you're holding is the standard bayonet that will fit most types (certainly my Honwave) but the Blue Wind (Chinese sib) I owned definitely needed the type with the lugs.
Thank you so much for your patience

So does that standard one need a pin in a middle or is it fine like that?

Like I said I am having difficulty inflated while the valve is closed so maybe my adapter is broken.
__________________
randomjelly is offline   Reply With Quote
Old 05 November 2015, 10:19   #14
Member

paddlers's Avatar

Country: UK - England
Town: Sticks, N.Yorks
Boat name: Tamanco
Make: Honwave 3.5AE
Length: 3m +
Engine: Tohatsu Outboard
Join Date: May 2012
Posts: 1,175
I think you have the wrong adaptor !
__________________
paddlers is offline   Reply With Quote
Old 05 November 2015, 10:33   #15
Member

Country: Australia
Length: 3m +
Join Date: Nov 2015
Posts: 13
Quote:
Originally Posted by paddlers View Post
I think you have the wrong adaptor !
You may be right !

This is the valve. Not sure if you can recognize the valve fitting


__________________
randomjelly is offline   Reply With Quote
Old 05 November 2015, 18:02   #16
Member

Landlockedpirate's Avatar

Country: UK - England
Town: St Helens
Boat name: Wine Down
Make: Maxum
Length: 8m +
Engine: Inboard
Join Date: Apr 2012
Posts: 934
What pump are you using ?

Some cheap pumps, especially 12v ones, dont have the power to force the valve open and inflate the tube.
__________________
Landlockedpirate is offline   Reply With Quote
Old 05 November 2015, 18:38   #17
Member

Country: UK - England
Town: Retford
Boat name: Spy-sea-one
Make: Excel 435
Length: 4m +
Engine: Suzuki Outboard/25/4
Join Date: Oct 2011
Posts: 7,532
RIBase
The pump should just blow past the rubber valve then back pressure keeps it shut but the dust cap is the final seal the button pressed in and turned is for fully deflating the hose end should turn in to stop it popping out under pressure whilst pumping up.
__________________
jeffstevens763@g is offline   Reply With Quote
Old 05 November 2015, 20:42   #18
Member

Country: Australia
Length: 3m +
Join Date: Nov 2015
Posts: 13
Quote:
Originally Posted by Landlockedpirate View Post
What pump are you using ?

Some cheap pumps, especially 12v ones, dont have the power to force the valve open and inflate the tube.
Although not one of the best one I am using the quick pump from Coleman.
It does work very well when the pushpin is in deflating mode.

Could anyone let me know if I have the right adapter or if is missing a part or if it's fine for the valve.

It is indeed a bit tricky to push the adapter in as it is just slightly bigger than the pushpin.

I am just confused as I have never owned an inflatable before.
__________________
randomjelly is offline   Reply With Quote
Old 05 November 2015, 23:56   #19
Member

Country: USA
Town: Oakland CA
Length: 3m +
Join Date: Feb 2005
Posts: 6,653
Quote:
Originally Posted by randomjelly View Post
Although not one of the best one I am using the quick pump from Coleman.
If that's the type for their airbeds, it's not going to generate enough pressure to open the valve on its own.

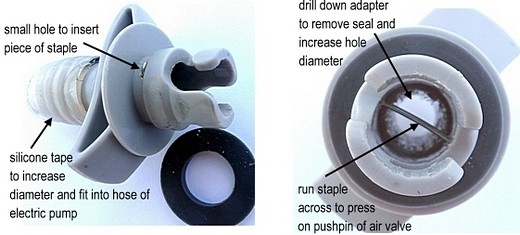

I modified my HR adapter with a cross-piece of wire to work with a Bravo HP pump. Not a big job, but takes a bit of measuring to get it right. Make sure your drill bit is slightly smaller than wire diameter so the wire doesn't keep falling out.

jky
__________________
jyasaki is offline   Reply With Quote
Old 06 November 2015, 06:47   #20
Member

beerbelly's Avatar

Country: UK - England
Town: teesside
Boat name: magic
Make: humber 5.5
Length: 5m +
Engine: mariner 115
MMSI: 232012453
Join Date: Apr 2014
Posts: 1,557
my adaptor has no cross wire and with a bravo hp pump has no problem fully inflating my honwave it also works great on my vango airbeam caravan awning that uses similar valves .I think the pump your using isn't generating enough pressure
